Perseus SDR

Dostępność: sprawdź dostępność (zadzwoń/wyślij email)
Cena: 3 600,00 zł 3600.00
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: Microtelecom
Pin It

Opis

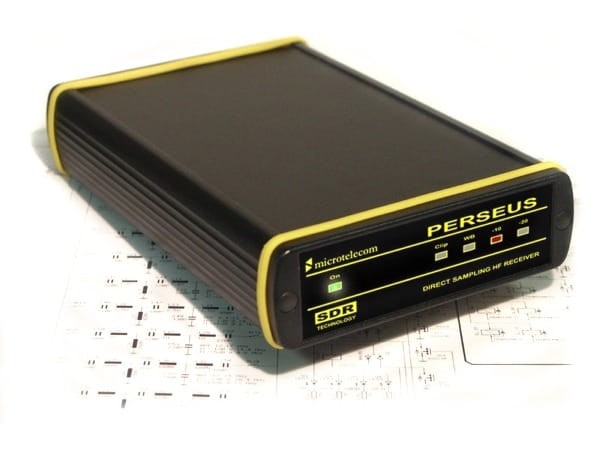

Perseus SDR

Odbiornik nasłuchowy klasy SDR - zakres 10kHz-40MHz



Osoby zainteresowane tym produktem prosimy o kontakt telefoniczny.



Szczegółowe informacje wg. producenta :



PERSEUS is a software defined VLF-LF-MF-HF receiver based on an outstanding direct sampling digital architecture.
It features a 14 bit 80 MS/s analog-to-digital converter, a high-performance FPGA-based digital down-converter and a  high-speed 480 Mbit/s USB2.0 PC interface.


A COMPLETE SDR RECEIVER FOR SHORTWAVES
The PERSEUS  analog front-end has been carefully designed for the most demanding users and includes a 0-30 dB, 10 dB steps, attenuator, a ten bands preselection filters bank, and a high dynamic preamplifier with a top-class input third-order Intercept Point of more than 30 dBm. The resulting third-order dynamic range is more than 100 dB in SSB and more than 105 dB in CW.
Believe us, there's no other so performant and complete shortwave SDR receiver in the market today.
The PERSEUS receiver can be operated also in a wide band mode as a 10 KHz - 40 MHz spectrum analyzer with more than 100 dB dynamic range in a 10 kHz resolution bandwidth.


SOFTWARE FOR DEMANDING USERS

Being a software defined radio, the PERSEUS receiver relies on software applications to carry out the demodulation process. Besides providing all the required software signal processing for the PC platforms, the PERSEUS software has a comfortable graphical interface, is simple to use and runs under Microsoft Windows 2000, XP, VistaSeven and Windows 8 (both 32 and 64 bit).
All the controls a listener is used to see on a radio are there, in the application main window. The interface to third party software is provided in several ways, by means of the Microtelecom Software Defined Radio Developer Kit, virtual audio ports and virtual communication ports.

The PERSEUS software supports wideband spectrum record/playback up to 2 MSPS with alias images rejection larger than 110 dB in a 1600 kHz bandwidth!


SUPPORT FOR REMOTE NETWORK OPERATION

The latest software release allows remoting a Perseus receiver to any TCP/IP connected location. A standalone server software (included in the zipped package available in thedownload page) was developed to allow remote connections, supporting unrestricted or authorized access to the receiver.

Based on upload bandwidth requirements, three presets were defined for the server software: GPRS, ADSL or LAN. The client can show both spectral and audio data with bandwidths as low as 80 kbps, or up to 2 Mbps for maximum quality and features (such as local decoding of a DRM transmission caught by the remote receiver or signal demodulation with a third-party software).
Local and remote operation are provided through the same client software for maximum interoperability and user friendliness.

Users can specify whether to appear on the Perseus Servers Map to allow easier connection through a simple point and click on any remote server icon.


Technical specifications :

Frequency Coverage 10 kHz - 30 MHz (tunable 0 - 40 MHz)
Modes Software-definied, AM, S-AM, SSB, RTTY, CW, FMN and more
Sensitivity 0,39 müV in SSB at 10 dB S+N/N
Selectivity Software-defined, Stop Band attenuation >100 dB
Image Rejection 90 dB
Input IP3 +31 dBm
Dynamic Range (IMD3) 100 dB (SSB, 2.4 kHz); 104 dB (CW, 500 Hz)
Spurious free Dynamic Range 110 dB
Blocking Dynamic Range 125 dB (CW, 500 Hz)
MDS (Minimum Detectable Signal) -131 dBm (bandwidth 500 Hz, Preamp On)
  -124 dBm (bandwidth 2.4 kHz, Preamp On)
ADC Clipping -3 dBm, resp. -6 dBm (Preamp On)
Attenuator 0, 10, 20, 30 dB
Low pass filter 0-1.7 MHz
Band pass filters 1,7-2,1, 1,1-3,0, 3,0-4,2, 4,2-6,0, 6,0-8,4
  8,4-12,0, 12-17, 17-24, 24-32 MHz
  sowie OFF (0-40 MHz im Breitband-Modus)
ADC (Analogue/Digital-Converter) 14 bit, 80 Ms/s with internal Dither Generator
DDC (Digital Downconverter) FPGA (Xilinx Spartan IIIE XC3S250E)
PC-Schnittstelle USB2.0, 480 Mbit/s
Sampling Rate(Output) 125 Ks/s, 250 Ks/s, 500 Ks/s, 1 MS/s, 2 MS/s
Output-Bandwidth 100/200/400/800/1600 kHz
  (bei Alias-Unterdrückung von 130 dB)
Output Signal 24 bit/sample I-Q/Pair
PC-Requirements 2,5 GHz Dual Core Processor, 1 GB RAM
Power Supply requirements +5V DC +/-5% - 700 mA
Universal-Power Supply f. 110/240V AC (included)
Cabinet Aluminium Enclosure, 110 x 36 x 185 mm (B x H x D)
Operating Temperature Range 0-40 °C
Frequency Accuracy ±1 ppm after calibration
Weight 380 g


Sprzęt objęty jest 24 miesięczną gwarancją.
