T-1000E Meshtastic Tracker GPS/LoRa/Bluetooth

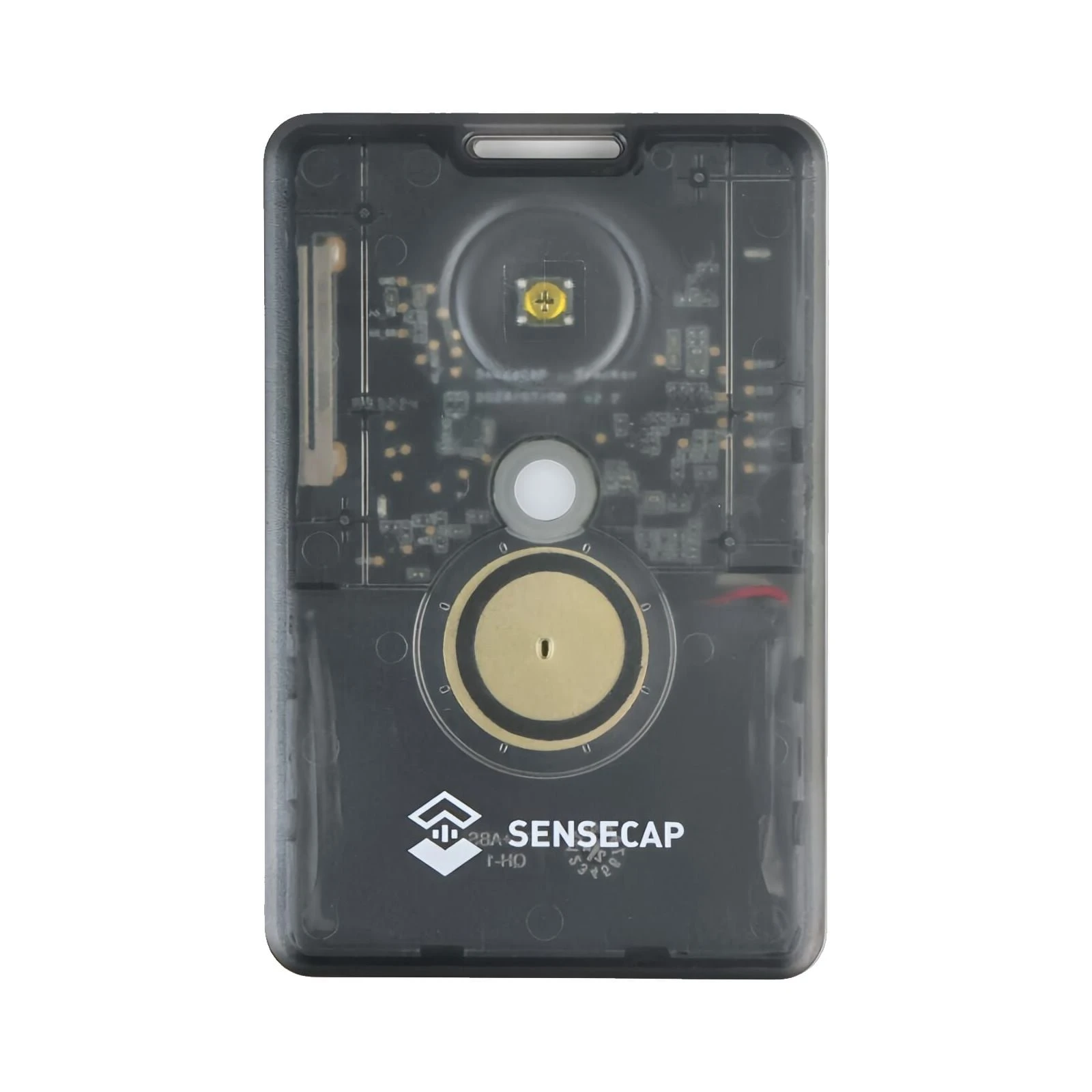

The SenseCap T-1000E is a compact, robust GPS tracker and communicator in credit card format (85 × 55 × 6.5 mm, 32 g) that has been specially developed for the LoRa mesh network Meshtastic. Thanks to its weatherproof housing (IP65), the device is ideal for outdoor use such as hiking, emergency preparedness, group coordination, or object tracking.

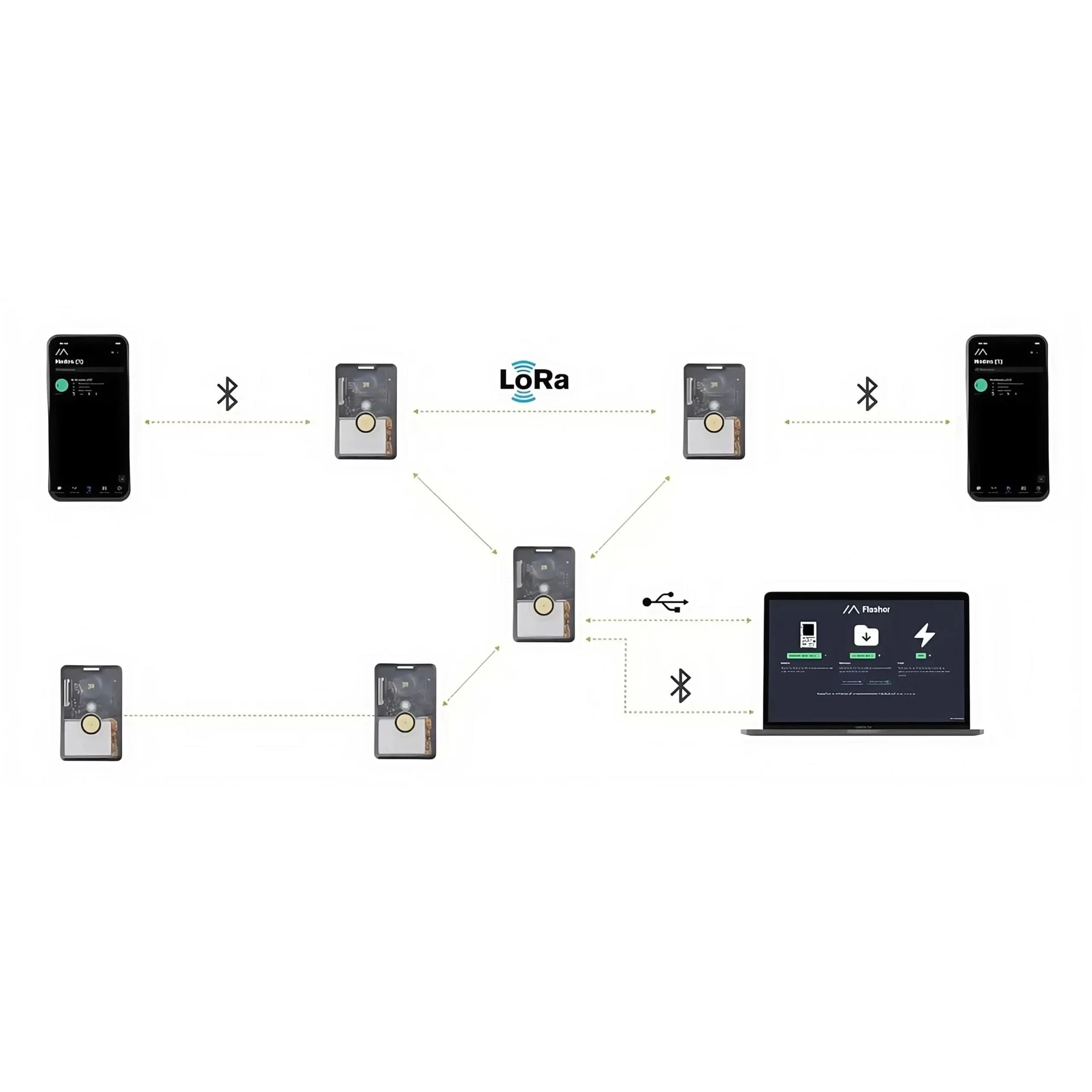

The tracker operates completely independently of the cellular network and uses license-free ISM frequencies in the 868 MHz band (EU). No SIM card or mobile phone contract is required – and there are no ongoing costs. In the European Union, the T-1000E can be operated without an amateur radio license as it automatically complies with the legal limits for license-free LoRa radio.

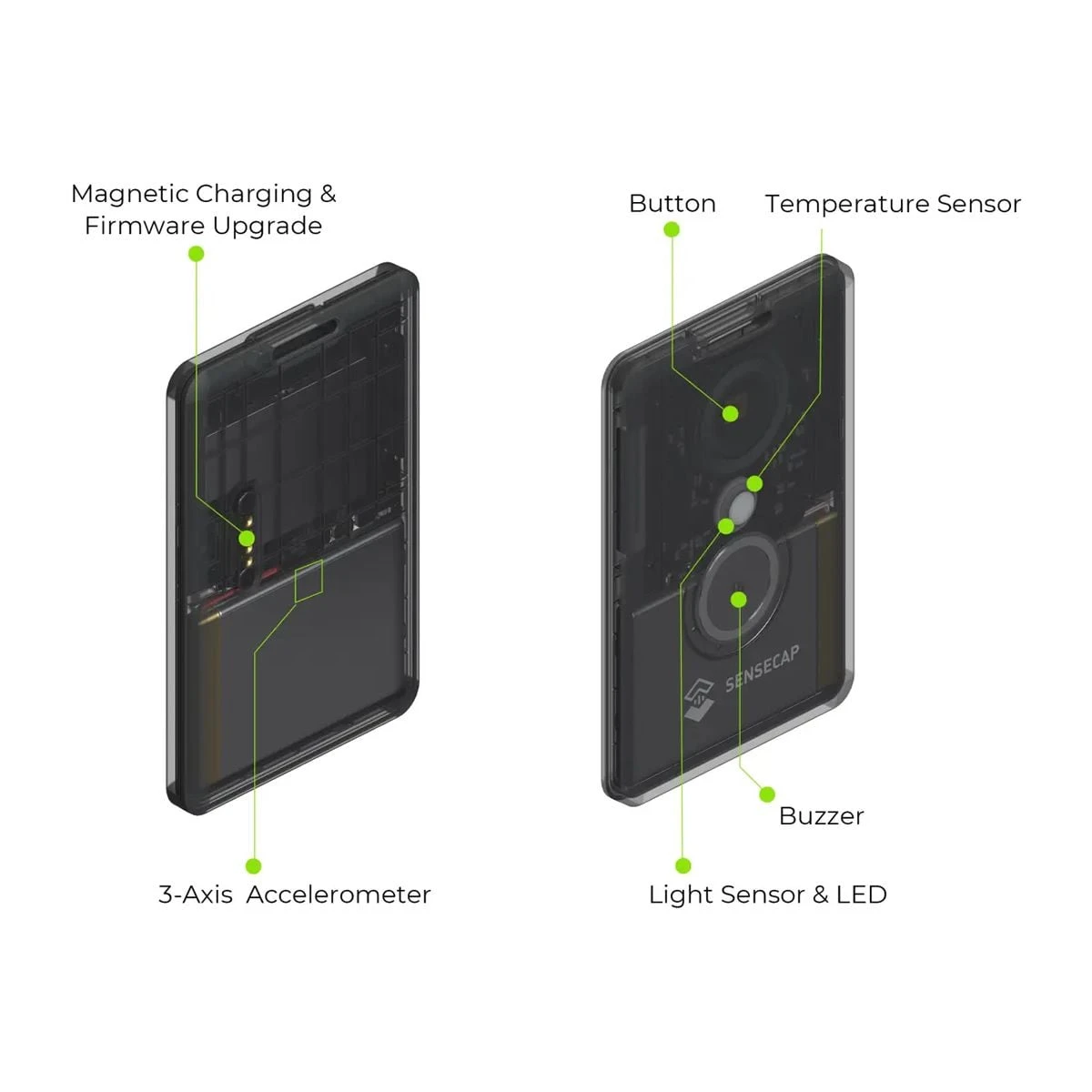

Inside, an energy-efficient nRF52840 processor with Bluetooth functionality is combined with a LoRa module (Semtech LR1110) and a GPS receiver (Mediatek AG3335). The equipment is supplemented by a temperature and light sensor, a 3-axis acceleration sensor, an LED display, a buzzer, a multifunction button, and four pogo pins on the back for maintenance and updates. The integrated 700 mAh battery is charged via a magnetic USB charging cable and lasts for about 2 to 3 days, depending on usage.
